Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions

Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions
Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions
Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions

Image Grand :  Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions

Détails sur le produit:
Lieu d'origine: Anhui
Nom de marque: Innovo Bochen
Certification: CE
Numéro de modèle: PT1300/1650/1900
Conditions de paiement et expédition:
Quantité de commande min: 1 ensemble
Prix: 23000-45000USD
Détails d'emballage: Sac sous vide
Délai de livraison: 1,8 m
Capacité d'approvisionnement: 50 ensembles par mois
Contact

Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions

description de
Poids du chargement: 1,5 tonnes Modèle de machine: Le nombre d'heures de travail
Package d'exportation: Sac à vide avec support de fer rapport d'essai de machines: Comme demande du client
Alimentation de l'équipement: 22KW, 380V, 3 phases Taille matérielle minimum: 50*60 cm ou plus
Assistance vidéo: peut fournir Taille maximum de palette: 130*80cm
Mettre en évidence:

pile turner machine with dust removal

,

pile turner machine for packaging line

,

pile turner machine with air alignment

Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions

This pile turner machine is designed for dust removal and air alignment in the printing and packaging industry, significantly improving work efficiency and print quality.

Machine Introduction

The Pile Turner performs multiple functions including turning, airing, aligning, jogging, dust removal, drying, conditioning, ionizing, pallet changing, centering, and sheet pulling. It is essential equipment for enhancing productivity and print quality in industrial printing operations.

Technical Specifications
Model 1300 1450 1650 1900
Max sheet size 800×1300mm 1100×1450mm 1200×1700mm 1400×1850mm
Min sheet size 500×600mm 500×600mm 500×600mm 500×600mm
Loading weight 1000kg 1400kg 2500kg 3000kg
Platform width 1300mm 1450mm 1700mm 1850mm
Max pile height 1600mm 1600mm 1600mm 1600mm
Min pile height 800mm 850mm 850mm 900mm
Power 380V, 10KW 380V, 12KW 380V, 14KW 380V, 22KW
Dimension 10600×2400×2750mm 11400×2600×2950mm 13000×2700×2950mm 13800×2900×2950mm
Machine weight 3500kg 4800kg 6500kg 8000kg
Key Features
  • Dust Removal: Effectively removes paper fibers, scraps, and printing powders to improve print quality and reduce defects by approximately 80%
  • Paper Separation: Uses vibration and air jetting to create air cushions between sheets, preventing mis-feeding and double-sheeting
  • Precision Alignment: Combines vibration platform with high-pressure air jetting for complete pile alignment in one operation
  • Efficient Turning: Handles double-sided printing paper piles with ease, improving workflow and reducing worker fatigue
  • High Productivity: Completes turning, dust removal, separation, and alignment in approximately 3 minutes
  • User-Friendly: Simple operation requiring no special training
Working Process
Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions 0

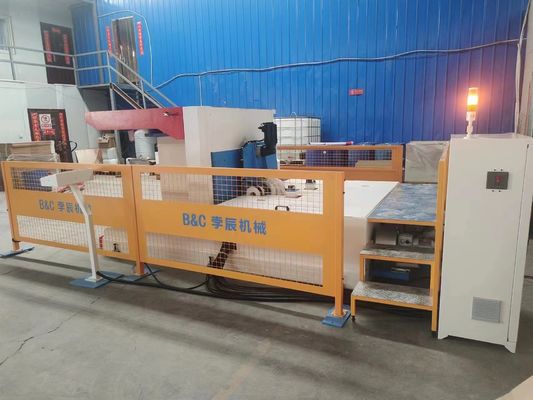

1. Loading pile into machine platform
Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions 1

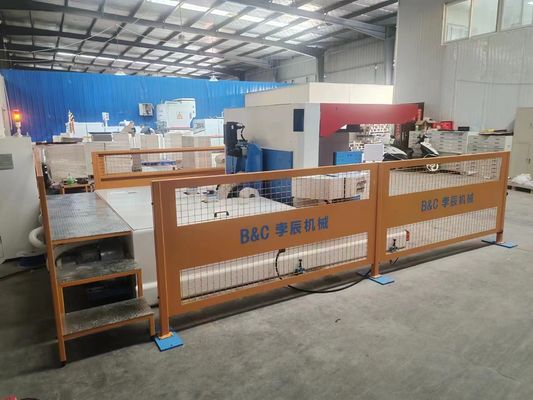

2. Turning, rotating and tilting process
Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions 2

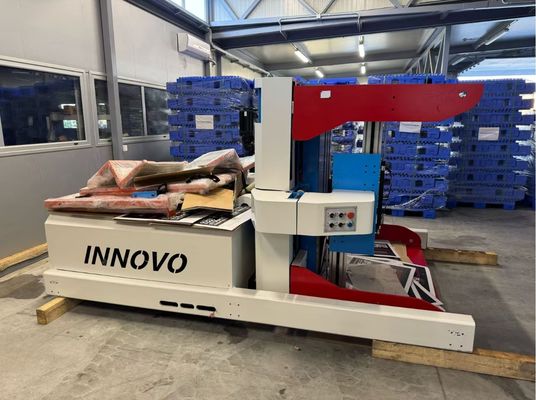

3. Dust removal and alignment process
Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions 3

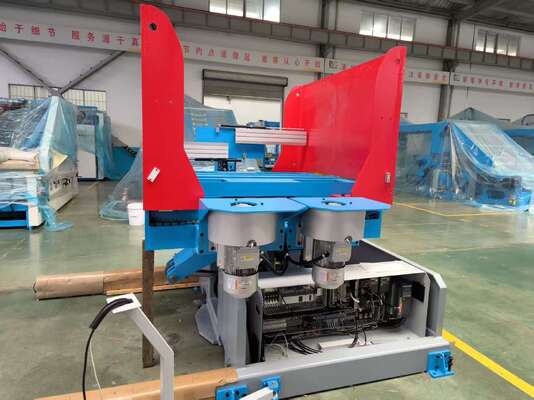

4. Finished pile ready for removal

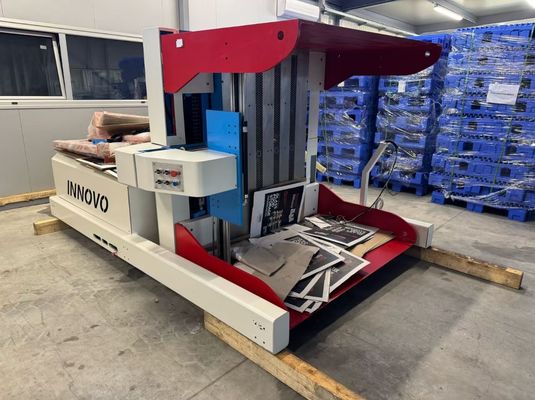

Machine Overview
Advanced Pile Turner Machine That Boosts Packaging Line Efficiency and Print by Integrating Dust Removal and Air Alignment Functions 4
